ALtech Applicators
ALstep
The ALstep series is available in the following versions:
S- maximum label width 100 mm, speed 30 m/min
M- maximum label width 200 mm, speed 20 m/min
T- with integrated thermal printer
E- lowest cost model with maximum label width 100 mm and speed 15 m/min.
The microprocessor allows all the labeling parameters to be entered via a display and function keys and then stored in EEPROM so they are always available when the unit is turned on.
The side-access paper reel allows for fast and easy label changes.
Available Functions
Label pre-dispensing adjustment
Adjustment of label dispensing speed
Labeling delay adjustment
Automatic recovery of missing labels
Progressive counter
End-of-roll alarm and web break alarm
Output for connection to other systems.
Optional Accessories
ALTECH can integrate the ALstep applicator with the following devices to solve specific labeling problems:
Hot stamp marker
Thermal transfer printer (ALstep T model)
Pneumatic and air-blow applicators
Near end-of-roll monitoring
Encoder speed control
Sensor for transparent labels.
ALritma
The ALritma applicator is controlled by a powerful microprocessor with a touch screen display. The most frequently used parameters are displayed via intuitive icons which represent the various functions and provide advanced management, relieving the operator of the need to perform complex mechanical adjustments and noticeably speeding up format changes.
Available Functions
Pre-dispensing adjustment in tenths of a mm
Speed adjustment in 0.1 m/min increments
Labeling delay adjustment in mm
Acceleration/deceleration ramp adjustment
Storage of different label formats
Automatic recovery of missing labels
Progressive and countdown piece counter
Automatic removal of double product detection
Shift register between product sensor and label application point
End-of-roll alarm and web break alarm
Output for connection to other
Optional Accessories
In addition to its sophisticated standard components, ALritma can also be equipped with a series of devices to increase its running time and performance:
Additional unwind unit
Increased diameter unwind unit (400 mm)
Hot marker
Sensor for transparent labels
Pneumatic and air-blow applicators
Near end-of-roll monitoring
Correct label application monitoring device
Non-stop monitoring device for two applicators installed in sequence
Automatic speed control via encoder
Serial interface for connection to Personal Computer.

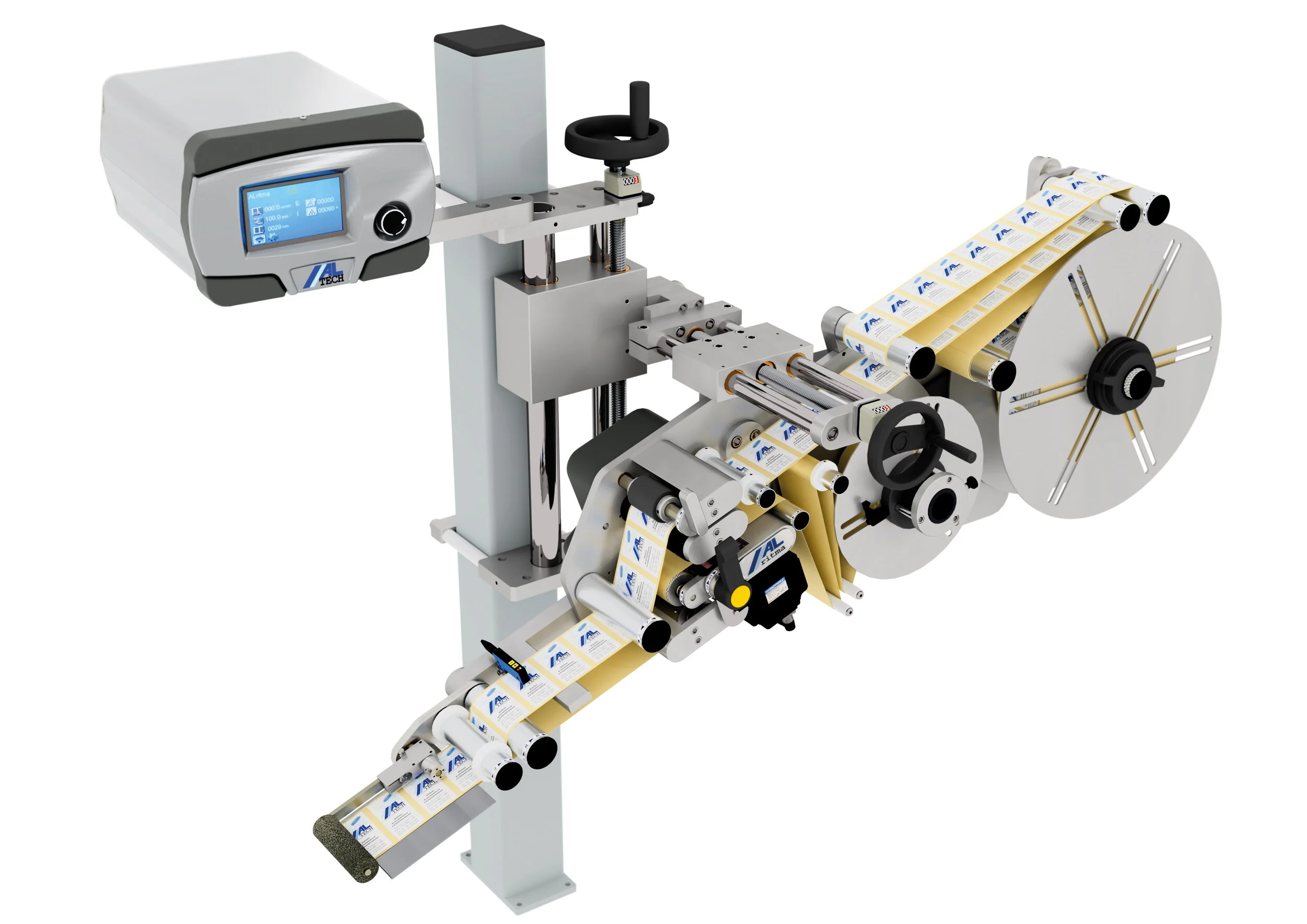

ALritma X
Despite its compact size, ALritma X is equipped with a larger unwind unit (400 mm diameter), coupled to a powerful rewinder unit to provide longer running times and reduced downtime.Thanks to its powerful stepper motor, it can reach label supply rates of 40 m/min, and is available for 100 and 200 mm label widths.
Available Functions
Side paper insertion system (with cantilevered rollers)
Double action pre-unwinding system
Push-pull drive system
Compact rewinder unit for the silicon paper with brushless motor and gear motor contained in the unwinder plate
Silicone paper removal system integrated in the paper driving disc
Near end of roll and rewinder full detection with ultrasound sensors
Reel-locking system with expanding mandrel
IP55 rated machine body
Compact control box with touchscreen interface.
